Quantum Dragon Conversion Engine Kit

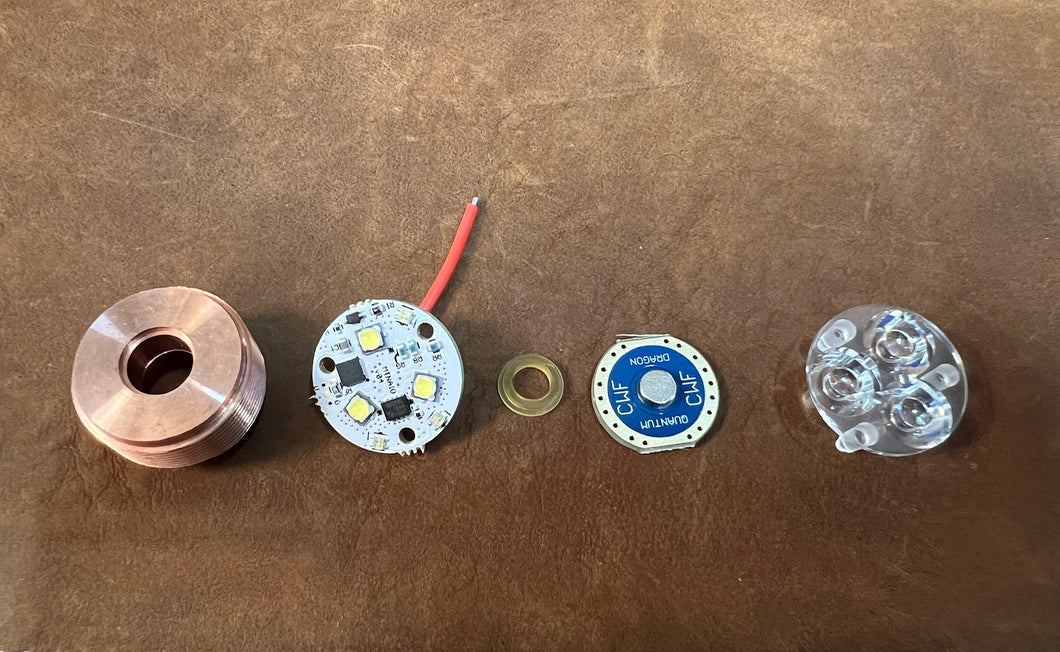

This is the parts if you care to assemble your own engine. Please understand that there will be no how to help or diagnostic help with these kits. You will recieve a engine pill, Quantum Dragon mcpcb, Carclo narrow optic, isolator and flow through board in this kit. you will need thermal paste which most should have that is not included.

You need to choose the pill and led option that fits your need.

ATTN! THIS WILL NOT FIT THE NEW TRI START THREADS ON HANKO LIGHTS.

PROGRAMMING

Quantum Dragon

Mode Groups
* Group 1: Color, ML, 5%, 15%, 35%, 50%, 100%
* Group 2: Color, ML, 35%, 100%
* Group 3: ML, 5%, 15%, 35%, 50%, 100%
* Group 4: ML, 5%, 15%, 100%
* Group 5: ML, 15%, 100%
* Group 6: 5%, 15%, 35%, 50%, 100%
* Group 7: 15%, 100%
* Group 8: 15% - 50%
* Group 9: 100% Only
* Group 10: Color, 100%
* Group 11: 100%, Color
* Group 12: Color, 50%
* Group 13: 50%, Color

Configuration Options:

To enter configuration mode, quickly cycle the switch 12+ times until it starts to flash. Once it starts to flash,
you are in configuration mode. Once in configuration mode, the light will give a solid light and ramp down, if you
want to modify options 2-4 cycle switch during ramp to move to next option.
* Option 1 = Mode group, when light ramps down it will flash all 3 colors and then the group number in white light
followed by all 3 colors. To select the group flashed in white light cycle the switch in the next color cycle
after the group number you want to use is blinked out.
* Option 2 = Secondary color choice, when light ramps down it will blink twice to show its in the second option
and flash each color several times, cycle switch while the color you want to use is flashing.
* Option 3 = Memory on/off, when light ramps down it will blink three times to show you its in the third option
and flash red or green several times. Cycle the switch while flashing red if you want memory off and green if you
want memory on.
* Option 4 = Strobe option, when light ramps down it will blink four times to show its in the fourth option and
flash each color several times, cycle switch while flashing red for off, green if you want standard strobe and
blue for bicycle mode. To access these in normal use cycle switch rapidly three times and it will access either
strobe programmed when turned on.
